METALSPAN by ALUCOPANEL is a Euro Class A1 (UK adoption of EN 13501-1) rainscreen cladding material. It features a non-combustible 100% inorganic mineral core, making it one of the most advanced mineral cores available. This results in exceptional fire safety performance with no smoke propagation (Euro Class A1 classification) and strong environmental benefits due to reduced aluminium use.
Certified and classified as A1 – non-combustible – for building facades under EN 13501-1, this is the highest fire protection classification for a facade material in the UK and worldwide. It also meets the requirements of the UK Building Regulations 2010 – Approved Document B – Fire Safety.
Manufactured in the UAE by Alucopanel Middle East LLC, a member of the DABNUBE Group, a well-established conglomerate, our cladding material is available as sheets only or with a non-load bearing aluminium vertical rail system (M-SPAN-BetterFIX systems M01, M03, M10, M12 and M13). This allows for project-specific requirements.
The advanced METALSPAN by ALUCOPANEL metal composite technology and non-combustible core reduce aluminium usage by 66% compared to traditional 3mm solid aluminium cladding. The lightweight composite structure enables 4–5 times faster fabrication, leading to lower energy consumption, reduced transportation loads and significantly lower carbon emissions. This results in a safer, lighter and more sustainable cladding solution that doesn’t compromise on safety, performance or durability.

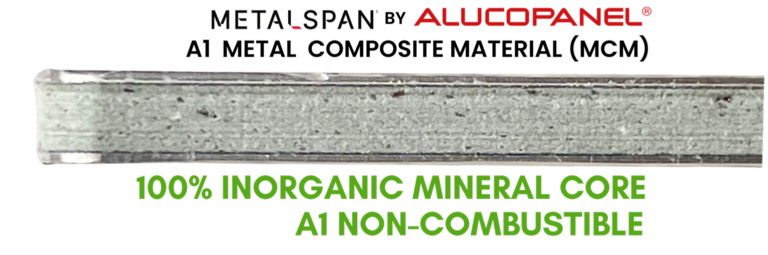

The true game-changer of METALSPAN by ALUCOPANEL A1 non-combustible MCM lies in its core technology. This advanced composite innovation eliminates the fundamental fire risks associated with earlier generations of composite cladding.
| Core Type | Combustibility | Smoke | Droplets | Class | Safety |
|---|---|---|---|---|---|
| PE Core | Combustible | Yes | Yes | D | Dangerous |
| Mineral Core A2 - s1, d0 |
Limited | Yes | No | A2 | Better to avoid |
| Mineral Core: A1 | Non-combustible | No | No | A1 | Excellent |
Featuring a 100% inorganic, non-combustible mineral core, METALSPAN by ALUCOPANEL MCM stands among the safest and most advanced rainscreen cladding materials available today. It delivers maximum fire safety, does not propagate smoke or toxic gases, and does not form burning droplets.

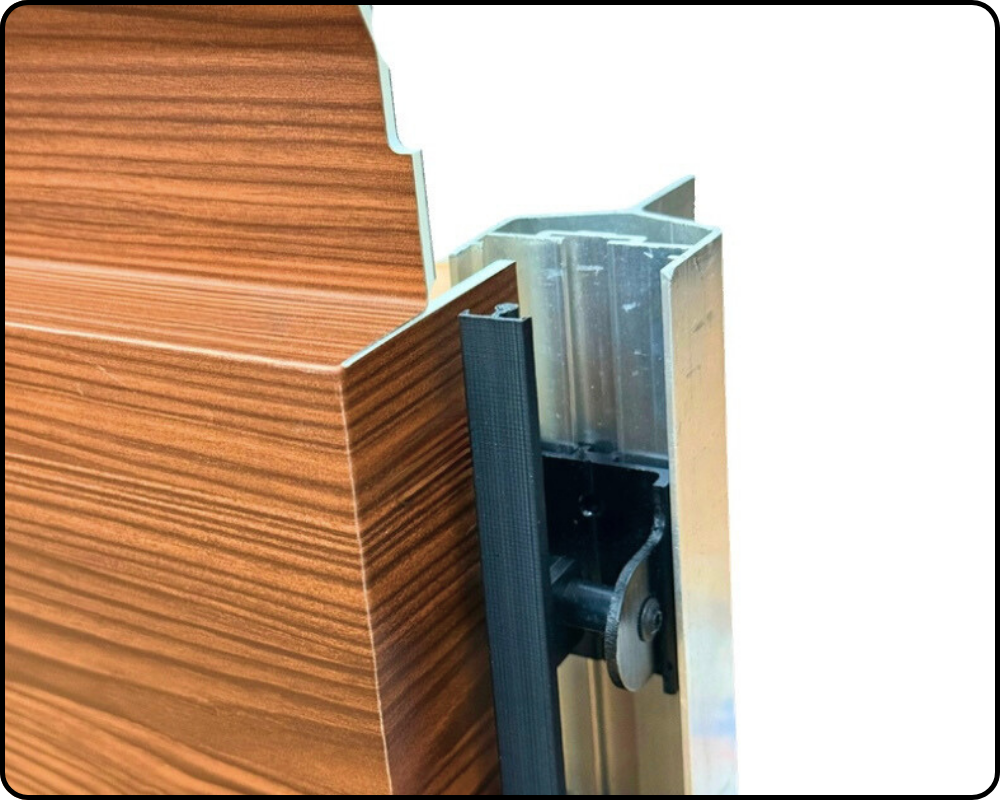

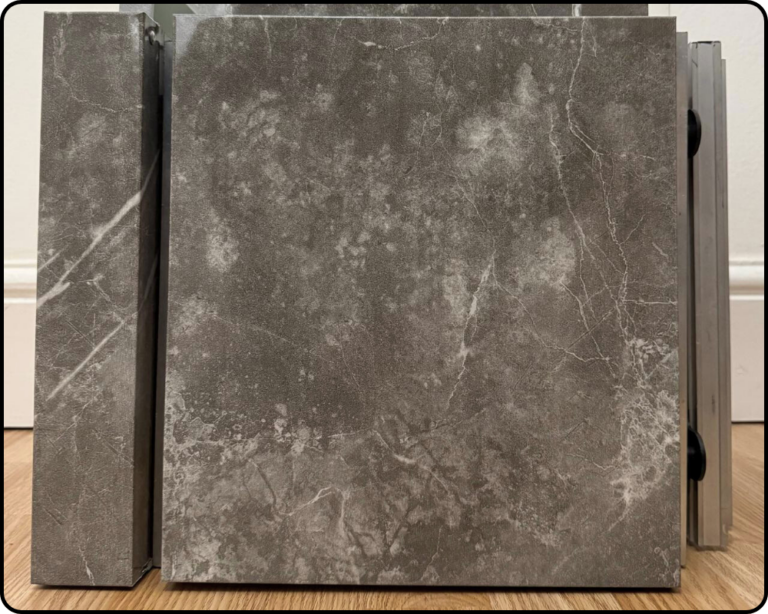

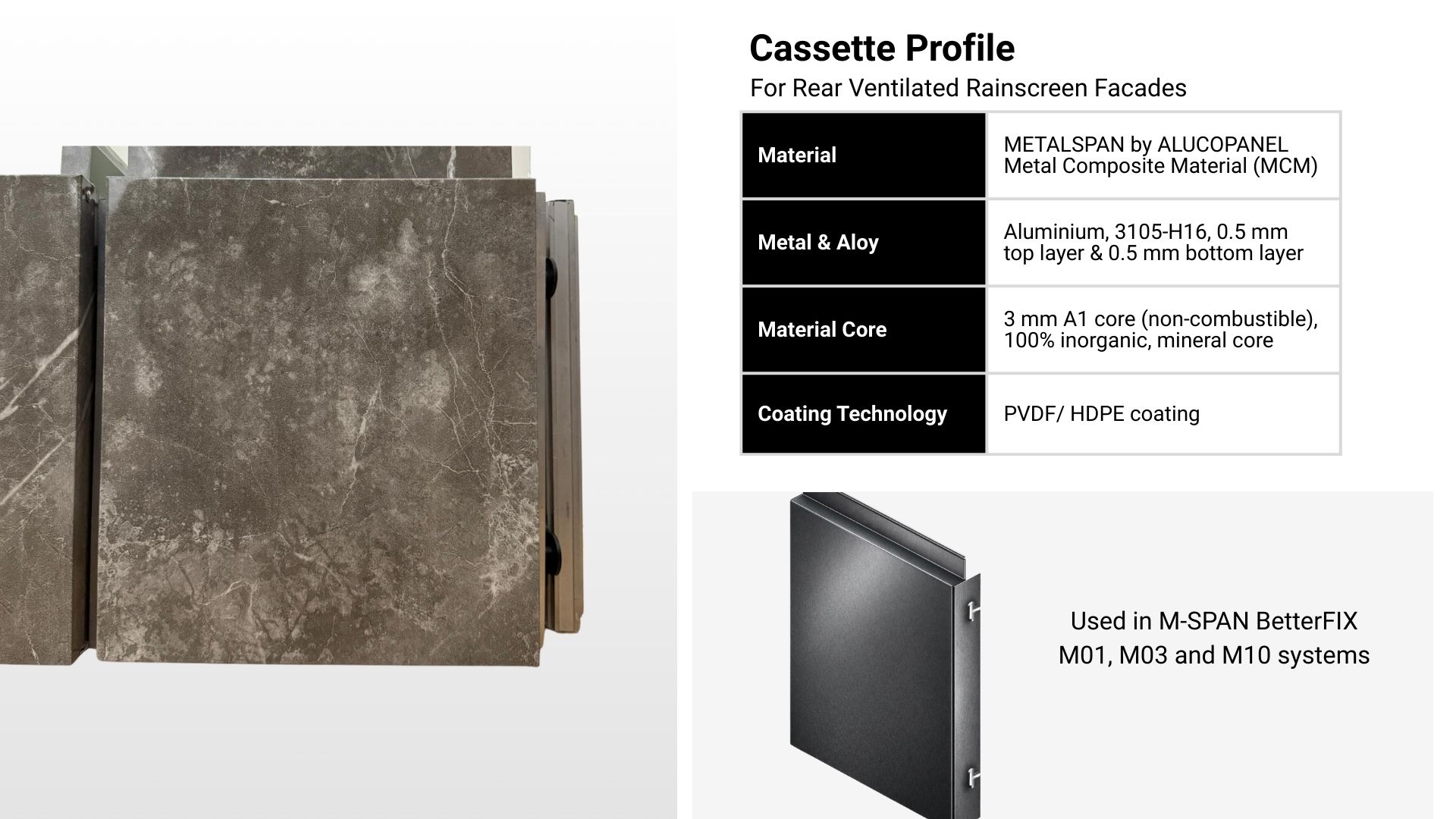

METALSPAN offers a range of M-SPAN BetterFIX Cassette systems featuring METALSPAN by ALUCOPANEL Euro Class A1 MCM material, that enhance rear ventilation and help to equalize pressure. Our M-SPAN M01, M03, and M10 systems offer versatile choices to suit your design, functional requirements, and project specifications. Available in a range of finishes, our cassette systems are designed and engineered for easy accessibility, fast installation, and easy maintenance with access through every panel.

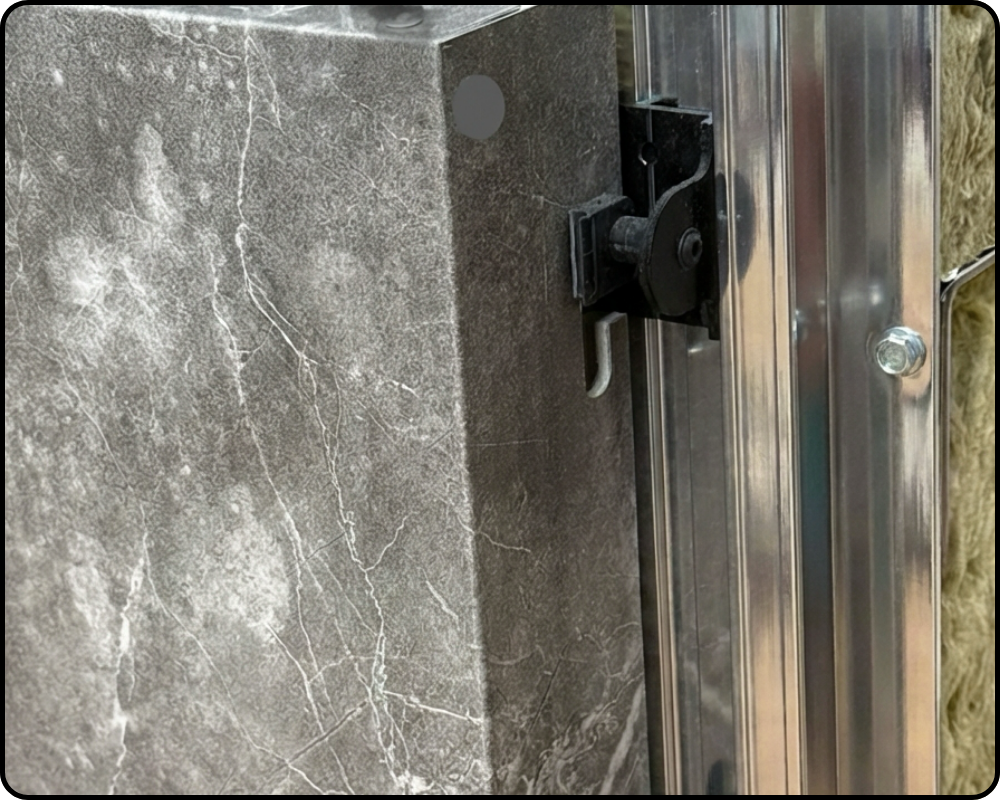

Our innovative systems feature secret-fixed Euro Class A1 METALSPAN by ALUCOPANEL MCM panels to deliver better rear-ventilated rainscreen façades with individually ventilated panels. The M-SPAN BetterFix M01 Rainscreen Cladding System comes with helping-hand brackets and movable carriers for easy panel installation, plus beads to cover vertical shadow gaps that can be coated to match the colour of the panels. Our unique system is designed to be installed from all four directions, providing flexibility and helping to save time.

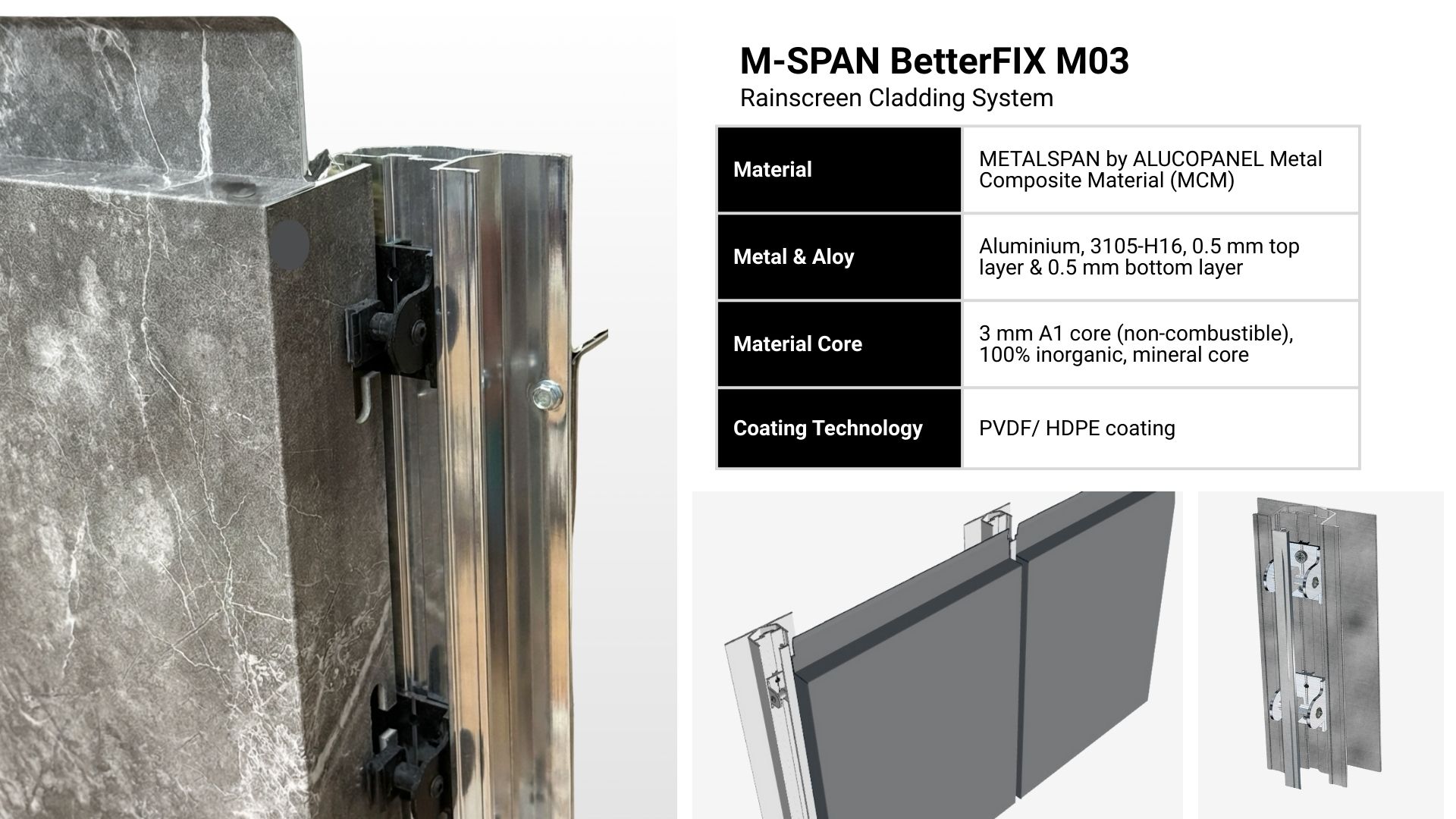

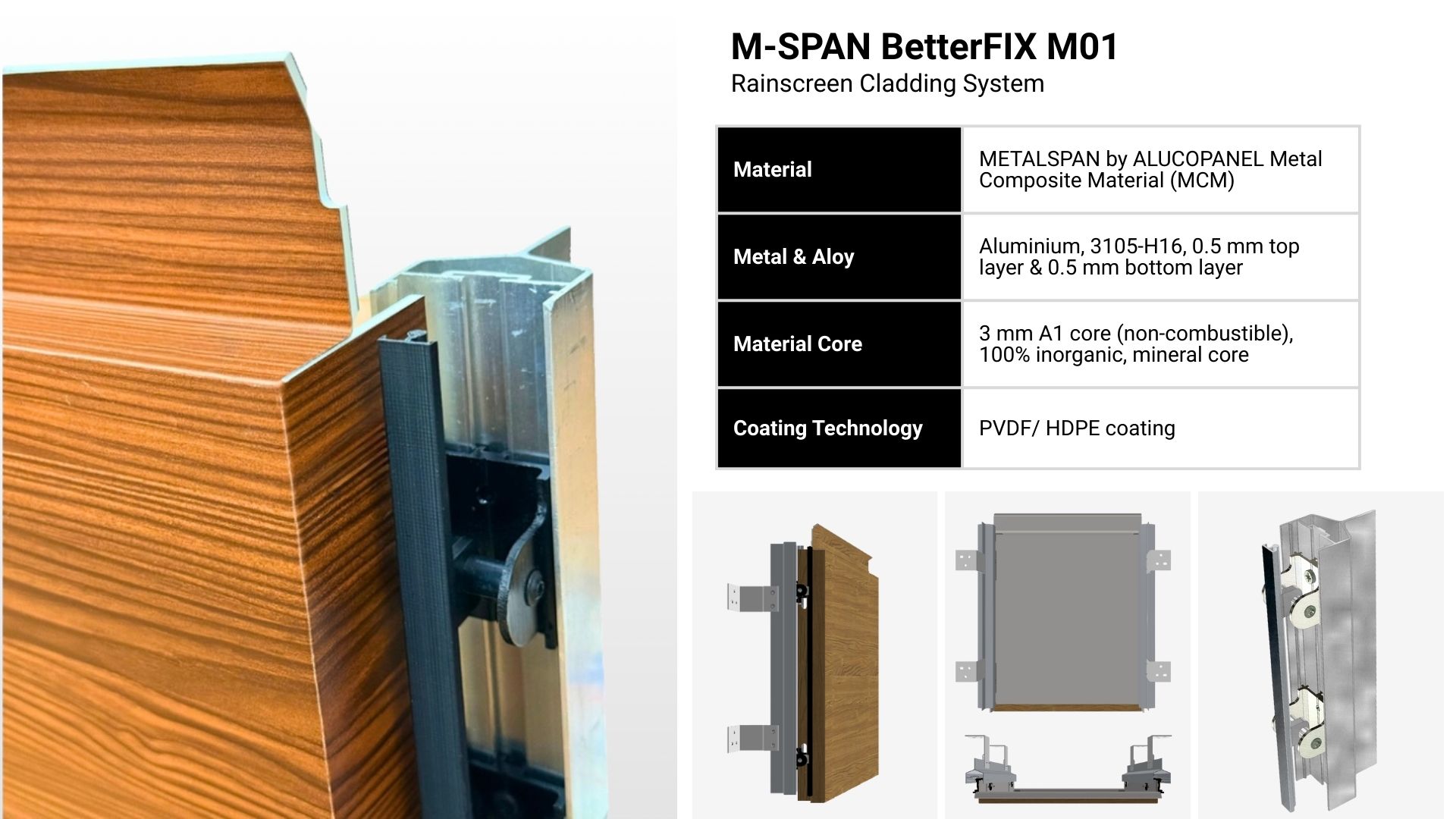

The M-SPAN BetterFIX Advanced Rainscreen Cladding System, featuring the METALSPAN by ALUCOPANEL Euro Class A1 Metal Composite Material (MCM) cladding, offers seamless aesthetics by concealing fixings behind the panels, even shadow gaps are concealed with a neat vertical bead that can be coated to match the cladding panel. The M-SPAN BetterFIX M03 Rainscreen Cladding System allows quick and easy alignment with the vertical rail fixed to the horizontal Z profile. Our panels have been designed to improve rear-ventilation for rainscreen façades. Reducing aluminium content in MCM use of aluminium in MCM lowers embodied carbon, supporting industry-wide decarbonisation. The M-SPAN system allows the removal or re-fitting of any panel on the façade without removing adjacent panels. Our system has been tested to the UK CWCT Rainscreen Cladding System test and has passed.

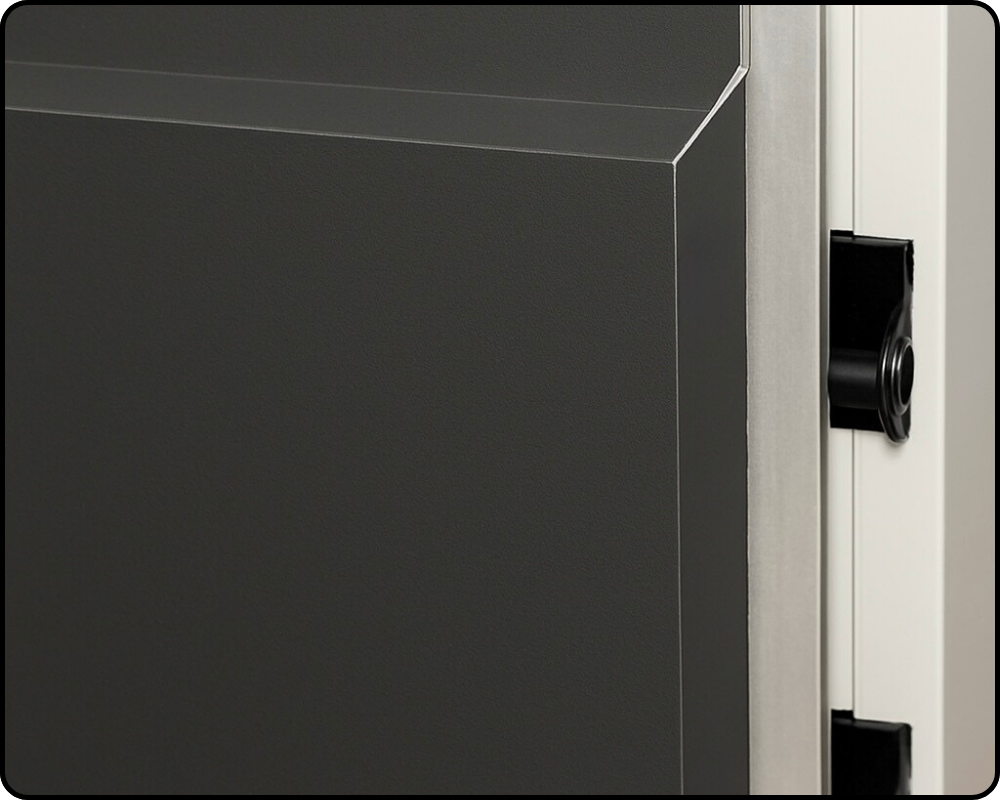

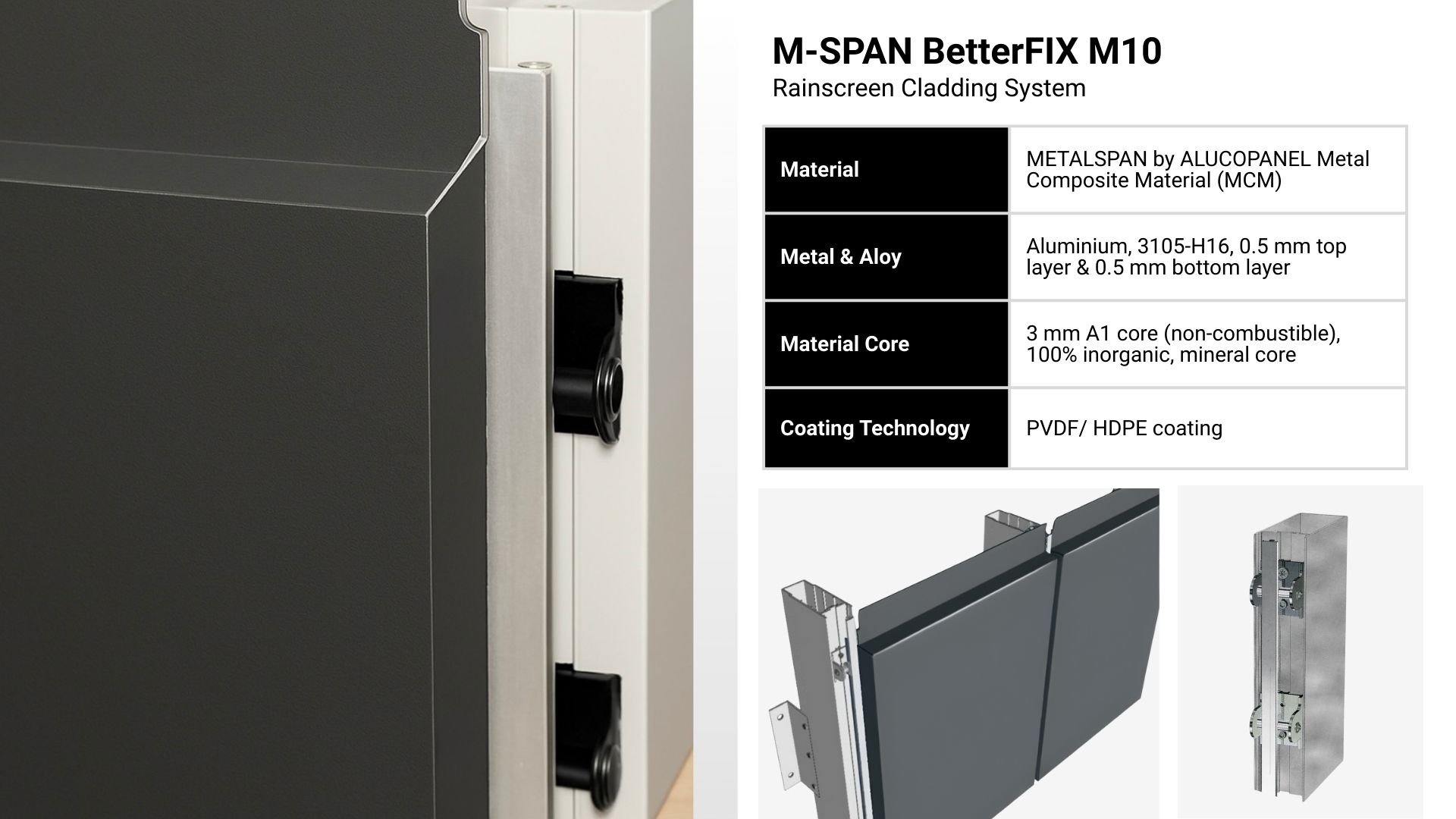

Our M-SPAN BetterFIX M10 Rainscreen Cladding System is designed to simplify and accelerate installation. Cassette panels are designed to enhance back ventilation behind individual panels plus beads available to cover vertical shadow gaps that can be coated to match the colour of the panels. The proprietary M-SPAN BetterFIX M10 profile, it is designed and engineered to span between floors where there are challenges to have brackets in between the floors. This offers enhanced flexibility and significantly reduces installation time. Additionally, our system ensures convenient access to individual panels for installation, removal, and maintenance.
The M-SPAN BetterFIX M10 Rainscreen Cladding System supports rear ventilation, maximizes fire safety, and minimizes embodied carbon, making it an environmentally conscious and reliable solution that offers significant benefits to both architects and contractors.
The M-SPAN BetterFIX Plank Systems with METALSPAN by ALUCOPANEL A1 MCM are designed and engineered to deliver a distinctive wood plank appearance. This system is specifically engineered for horizontal and vertical installation, effectively eliminating the industrial look and enhancing the aesthetic appeal.

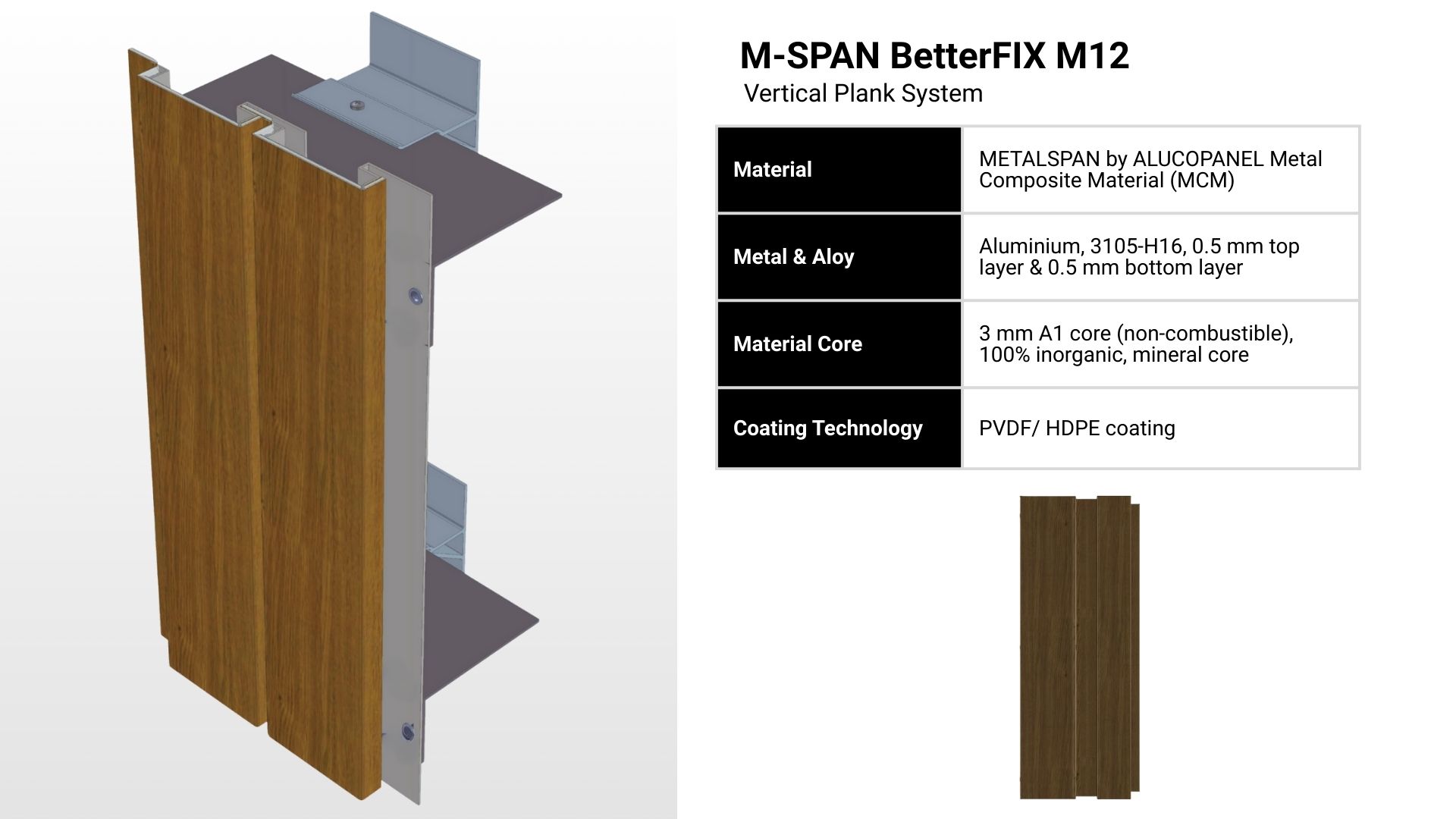

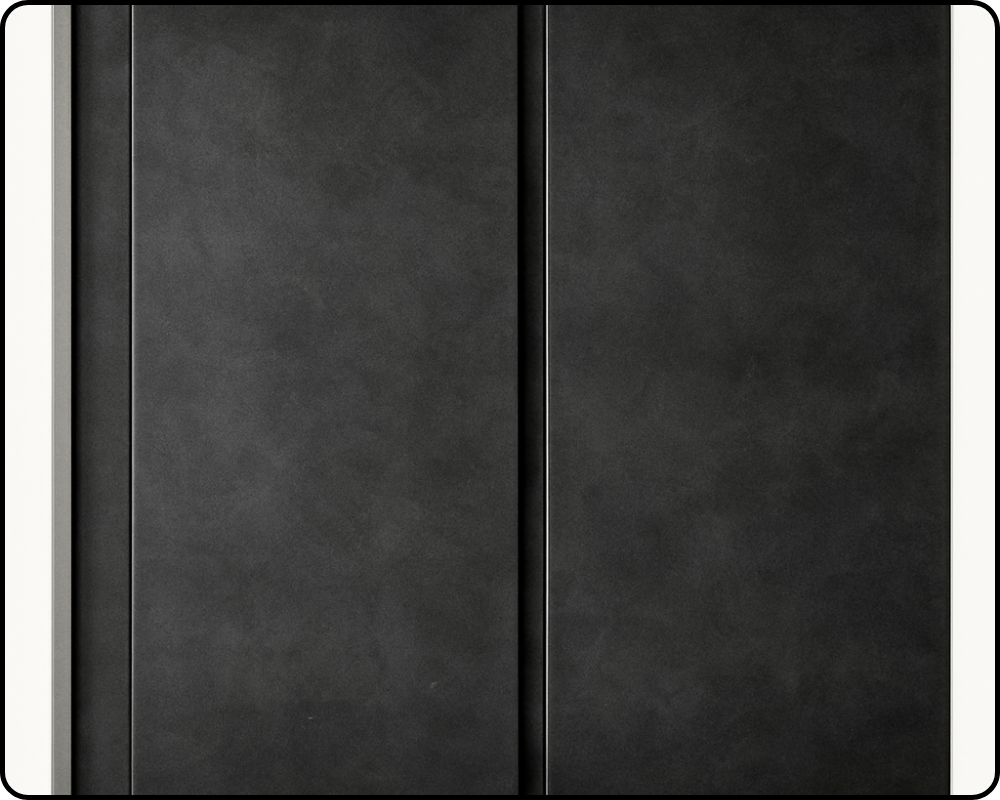

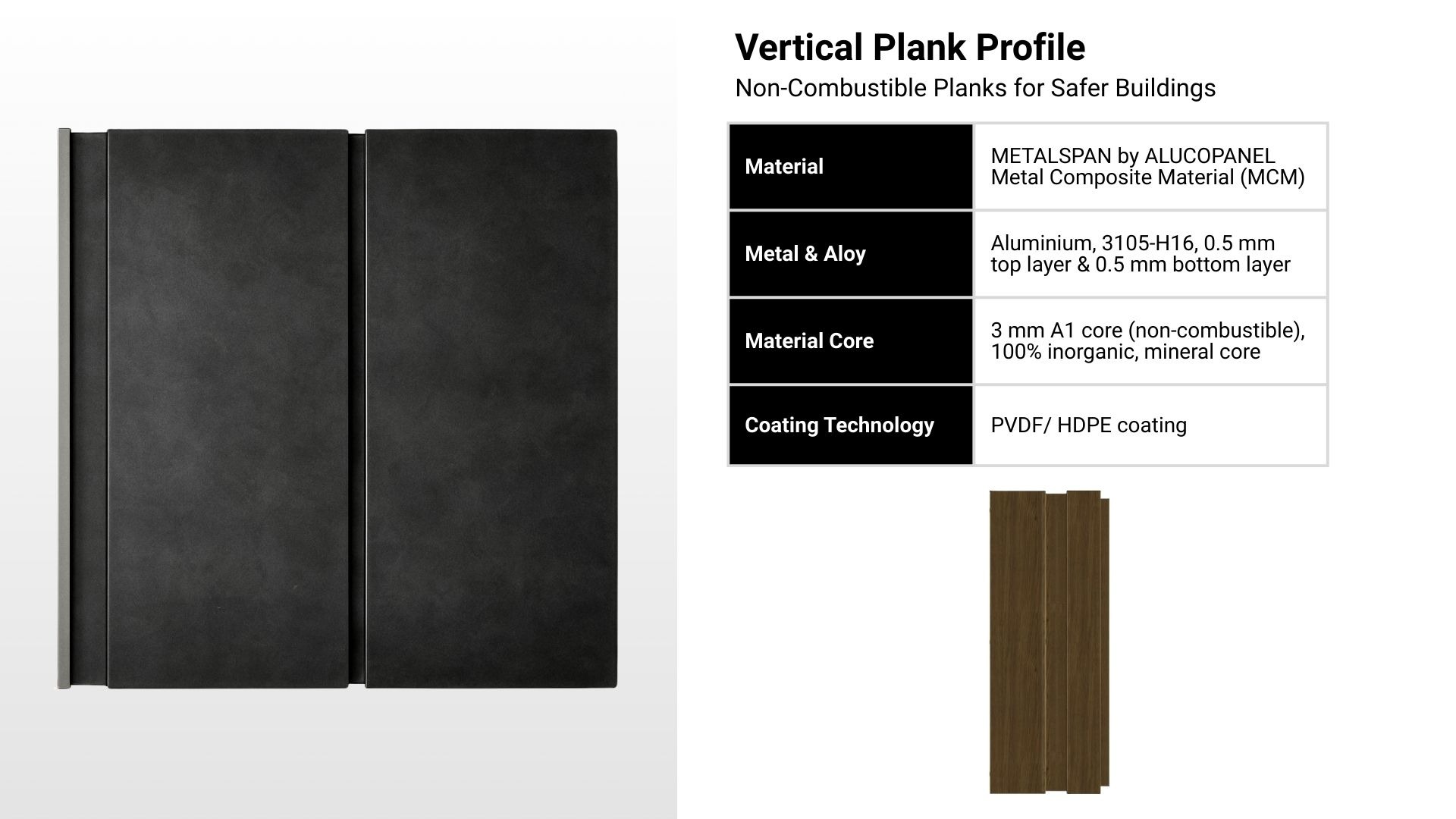

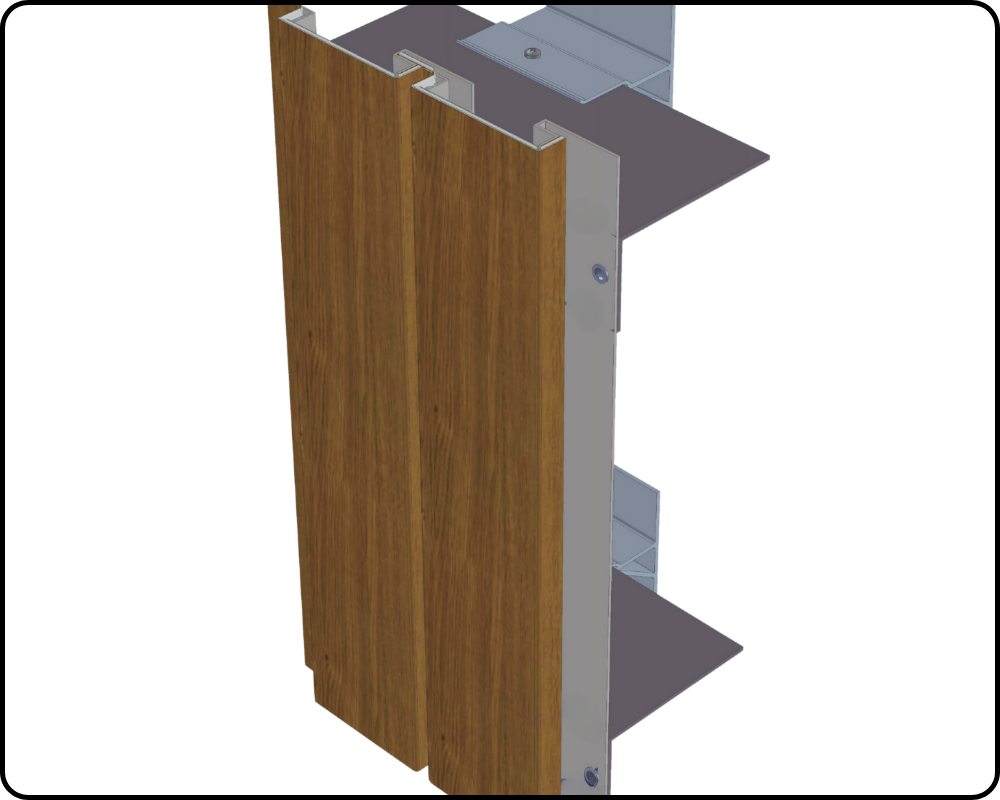

The M-SPAN BetterFIX M12 Rainscreen Vertical Plank system, featuring METALSPAN by ALUCOPANEL Euroclass A1 non-combustible metal composite material (MCM), offers a safe, durable, and eco-friendly facade solution ideal for both new constructions and cladding replacements. This system is the perfect alternative to natural wood cladding, providing the warmth and aesthetic appeal of wood through our wood finish plank options

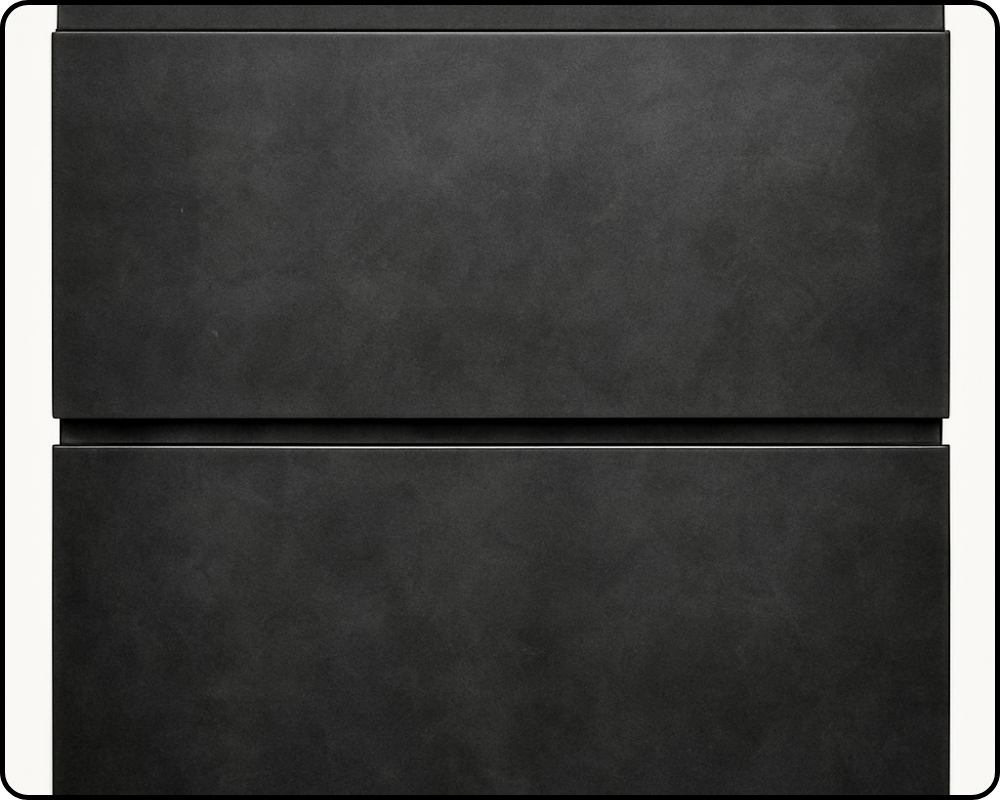

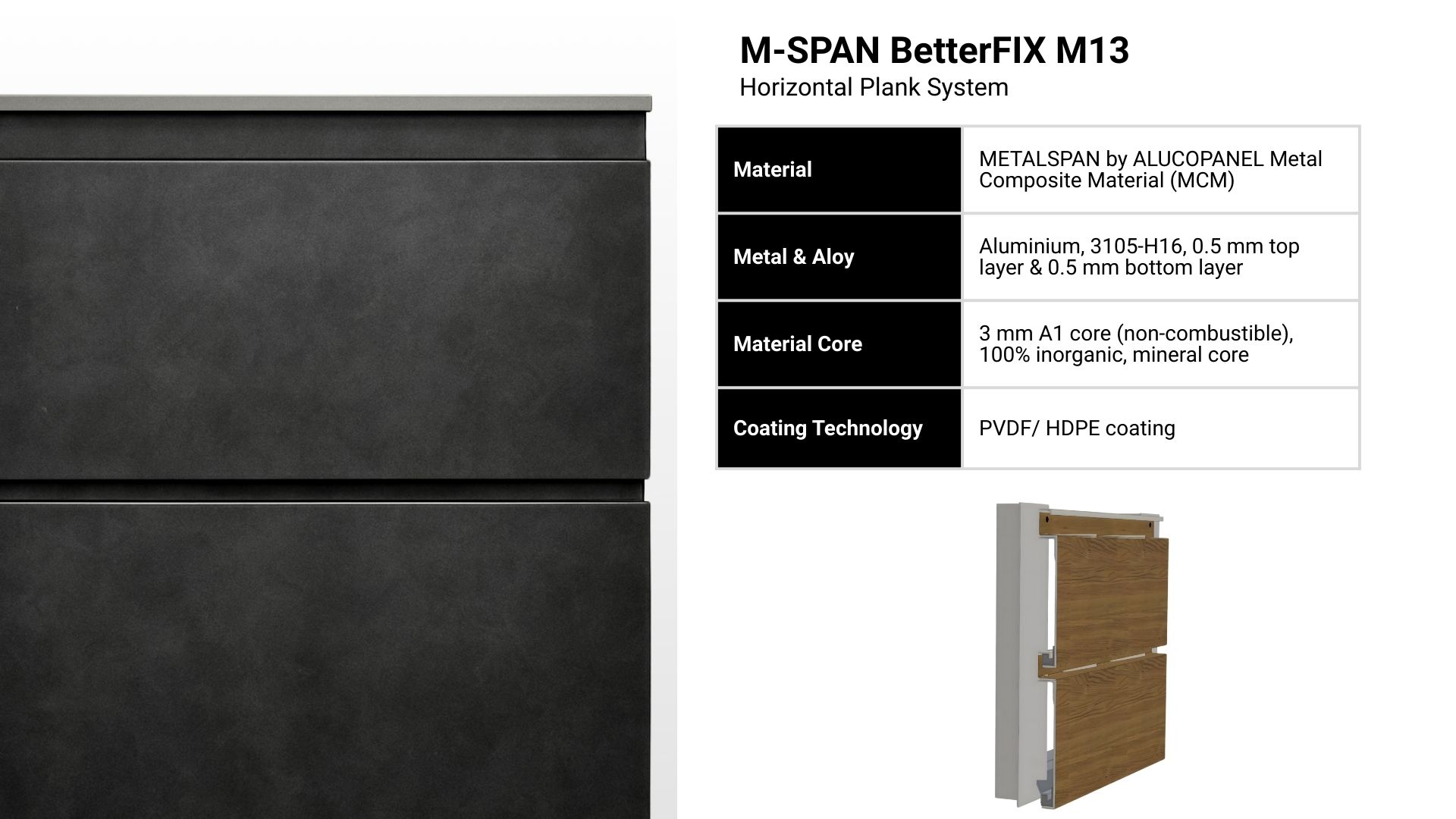

METALSPAN BetterFIX M13 horizontal plank system uses Euroclass A1 non-combustible Modular Construction Material (MCM) ideal for those who prioritise natural aesthetics and sustainability. The wood finishes on the MCM reduce deforestation and maintenance costs. Aluminium requires less maintenance than natural wood and the MCM A1 core offers superior fire safety.
Manufactured in the UK, these planks offer installation flexibility and come in various wood and solid colours. High-durability HDPE coatings from Beckers, the world’s leading powder coating brand, enhance their longevity. Wood planks remain a favourite among architects for residential building façades. METALSPAN’s wood-finish plank system brings warmth to your spaces without contributing to deforestation.
**Colour images are for reference only and may show slight variations from the actual product.
METALSPAN by ALUCOPANEL A1 offers non-combustible MCM cladding with stunning metallic finishes, elevating your structure with a glamorous touch. The advanced Polyvinylidene fluoride (PVDF) coatings from Beckers brand ensure beauty and durability with their 150 years of experience in the paint industry. Our in-house coating line enables us to meet your requirements promptly and efficiently!
**Colour images are for reference only and may show slight variations from the actual product.

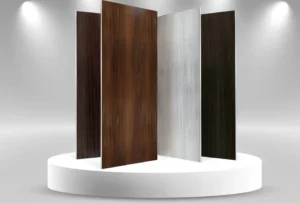

Alucopanel A1’s METALSPAN non-combustible ACM cladding offers stunning wood finishes that blend the natural warmth of wood with advanced High-Density Polyethylene (HDPE) coatings from Beckers Group. This combination ensures both the beauty and safety of your building. Furthermore Alucopanel’s in-house coating line allows for swift responses to your specific needs.
**Colour images are for reference only and may show slight variations from the actual product.
Metalspan by Alucopanel A1 MCM: Nature-Inspired Cladding offers a revolutionary cladding solution that beautifully merges the elegance of natural stone with the safety and durability of non-combustible MCM materials. Here’s what sets it apart:
Natural Stone Aesthetic: Featuring stunning stone finishes, Metalspan seamlessly integrates with natural environments, enhancing any architectural design. Advanced Coating Technology: Utilizes high-quality HDPE coatings from Beckers, ensuring vibrant colors and long-lasting aesthetics.
**Colour images are for reference only and may show slight variations from the actual product.
*Above colours are only for displayed purpose. Please verify the colour sample before ordering
*Tolerance in color between batches: ∆E2.0 in accordance to ISO 7724-3 (EN 1396:1996)
**Colour images are for reference only and may show slight variations from the actual product.
*Above colours are only for displayed purpose. Please verify the colour sample before ordering
*Tolerance in color between batches: ∆E2.0 in accordance to ISO 7724-3 (EN 1396:1996)

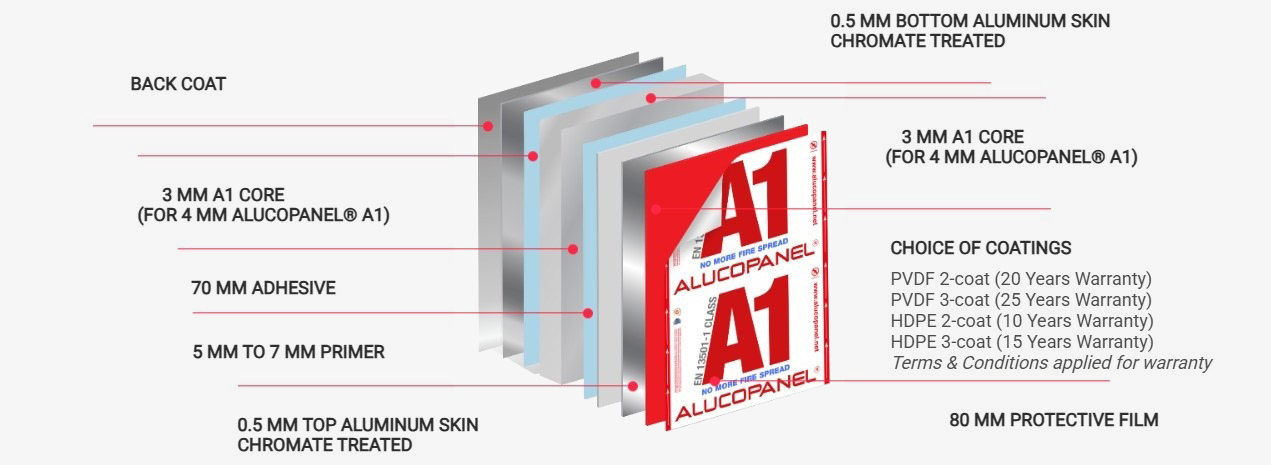

METALSPAN by ALUCOPANEL, a Metal Composite Material (MCM) manufactured by Alucopanel Middle East LLC in Dubai, UAE, is a subsidiary of Danube, a diversified group of companies headquartered in the UAE. Danube boasts three decades of experience, a revenue of USD 1.4 billion and 2,500 employees. METALSPAN serves as Alucopanel Middle East’s exclusive partner for the UK and Europe. Established over 14 years ago, they have a proven track record of installing over 1 million square meters of A2-grade fire-retardant MCM material on over 250 high-rise buildings across the UAE, the Middle East, Australia and Asia. Headquartered in the UAE, Alucopanel operates three production lines and an in-house PVDF coating line. Their annual production capacity is 2.5 million square meters, with an in-house PVDF coating capacity of 8,000 square meters per day. In early 2021, Alucopanel introduced cladding with A1 metal composite technology, becoming one of the few companies globally to offer this advanced solution.
| Test Standard | Tolerance | Result (4mm) | |
|---|---|---|---|
| Panel Thickness | Calibrated Caliper | (+) 0.2 mm | 4 mm |
| Weight of the Panel | Calibrated Weighing Device | 0.5 kg/m² | 8.0 kg/m² |
| Standard Width | - | 2 mm | 1000, 1250, 1500 up to 2000 mm |
| Length | - | 4 mm | up to 6000 mm (Max 8000 mm) |
| Skin Thickness | Caliper | 0.05 mm | 0.50 mm |
| Result / Certificate Ref. No. | |||
|---|---|---|---|
| Test Standard | Requirement | 4MM | |
| Reaction to Fire | EN 13501-1 | Class A1 | TBW 0300647 |
| Self and Flash Ignition Temperature (CORE) |
ASTM D 1929 | Not less than 343°C | SIT: > 750°C, FIT: > 750°C |
| Self and Flash Ignition Temperature (ACP) |
ASTM D 1929 | Not less than 343°C | SIT: > 525°C, FIT: > 524°C |
| Exterior Wall Cladding System | NFPA 285 | Pass as per standard | TBW 0300672 |
| Roof Covering Assembly with Mineral Wool Insulation (45-70° from the horizontal plane) |
EN 13501-5 | BROOF(t4) | TBW0300736 With thermal insulation fixed direct at rear face of ACP, on Alum structure with 300 mm Void ideal for Continuous Roof Covering. Roof pitch: 10° to 70° |
| Roof Covering Assembly (10-70° from the horizontal plane) |
EN 13501-5 | BROOF(t4) | TBW0300737 Without any packing material on Alum structure with 300mm Void ideal for canopies and feature. Roof pitch: 10° to 70° |
| Result | |||
|---|---|---|---|
| Test Standard | Requirement | 4MM | |
| Alloy / Temper | ASTM B209 | 3105 - H16 | |
| Tensile Strength | ASTM E8 | 172 - 221 N/mm² | 196 N/mm² |
| Yield Strength | ASTM E8 | Min. 145 N/mm² | 190 N/mm² |
| Elongation | ASTM E8 | Min. 1.0% | 4.2% |
| Modulus of Elasticity | ASTM E111 | Measure Value | 69 Gpa |
| Result | |||
|---|---|---|---|
| Test Standard | Requirement | 4MM | |
| Peel off Strength | ASTM D 903 | ≥ 10 kg/25mm | 17.35 kg/25 mm |
| Shear Strength | ASTM D 273 | ≥ 3.2 MPa | 3.35 MPa |
| Tensile Strength | ASTM E8 | ≥ 35 MPa for 4mm | 44.48 Mpa |
| Punch Shear Test | ASTM D 732 | ≥ 20 MPa | 23.77 Mpa |
| Result | |||
|---|---|---|---|
| Test Standard | Requirement | 4MM | |
| Temperature for Thermal deformation | ASTM D 648 | ≥ 100°C | 149°C |
| Linear Thermal Expansion per 100°C | ASTM D 696 | ≥ 2.4 mm/m/c° | ≥ 2.4 mm/m/c° |
| Thermal Conductivity | ASTM C 518 | Measure Value | 0.129 W/mK |
| Result | |||
|---|---|---|---|
| Test Standard | Requirement | 4MM | |
| Type / Finish | PVDF / FEVE / HDPE | PVDF / FEVE / HDPE | |
| Coating Thickness | ASTM D 1400 | ≥ 25μm | ≥ 25μm |
| Weathering Resistance | ASTM C 481 | A. Shear Strength B. Film Adhesion C. Impact Resistance |
A. 3.75 Mpa (after exposure) B.1 Dry Adhesion - No removal of film B.2. Wet Adhesion - No removal of film B.3. Boiling Water - No removal of film C. Impact Resistance - No removal of film |
| Corrosion Resistance (Humidity Resistance & Salt Spray) |
AAMA 2605 | A. Humidity Resistance (@4000 hours exposure) B. Salt Spray Resistance (@4000 hours, 35°C) |
A. No formation of blisters B.1 Scribed - rating of 9 B.2. Unscribed - rating of 10 |
| Chemical Resistance | ISO 2812 -1: 2014 | A. Acid Resistance B. Alkali Resistance C. Oil Resistance D. Solvent Resistance |
A. NO CHANGE B. NO CHANGE C. NO CHANGE D. NO CHANGE |
| Abrasion Resistance | ASTM D 968 | ≥ 50 L/mil | 55.5 L/mil |
| T-Bend Test | ASTM D 522 | 2T (No Cracks) | 2T (No Cracks) |
| Pencil Hardness | ASTM D 3363 | ≥ H | ≥ H |
| Film Adhesion DRY (@27°C) WET (@38°C, 24hrs) BOILING (@100°C, 20hrs) |
AAMA 2605 (Clause 7.4) |
No removal of film | No removal of film of the cross-hatched area; No blistering was observed |
| Impact Resistance Test 50 kg-cm | AAMA 2605 (Clause 7.5) |
No removal of film | No removal of film |
Featuring a 100% inorganic, non-combustible mineral core, METALSPAN by ALUCOPANEL MCM stands among the safest and most advanced rainscreen cladding materials available today. It delivers maximum fire safety, does not propagate smoke or toxic gases, and does not form burning droplets.
| Test Standard | Requirement | Result (4MM) | |
|---|---|---|---|
| Reaction to Fire | - | Class A1 | TBW 0300647 |
| Self Ignition Temperature (ACP) |
ASTM D 1929 | Not less than 343°C | SIT 525°C FIT 524°C |
| Self Ignition Temperature (CORE) |
SIT > 750°C, FIT > 750°C |
METALSPAN by ALUCOPANEL, our Euroclass A1 non-combustible Metal Composite material ( MCM) has been tested to large scale non-load bearing external wall assembly test NFPA 285 (USA) standard. The results confirm that our product does not support fire propagation. The NFPA 285 standard outlines the test method for evaluating the fire propagation characteristics of exterior wall assemblies containing combustible components. It is a 30-minute, full-scale test (intermediate-scale multi-story apparatus) that evaluates how an exterior wall assembly resists vertical and horizontal fire spread. Passing this test means the material inhibits fire propagation from one floor to another, which is a key requirement for high-rise buildings.
METALSPAN by ALUCOPANEL Metal Composite Material (MCM) Classified A1 non-combustible material according to reaction fire test BS EN 13501-1 (UK adoption of EN 13501-1) — the highest possible fire-safety rating for construction materials.
Tested in accordance with AS 1530.1 (Australian Standard) for non-combustibility of building materials.
M-SPAN BetterFIX Rainscreen Cladding System featuring festering A1 non-combustible METALSPAN by ALUCOPANEL Metal Composite Material Metal has been tested according to CWCT UK rainscreen cladding system test protocol, one of the industry’s toughest standards for façade safety and performance.
Traditional cladding often involves materials that are energy-intensive to produce and transport, contributing to a higher environmental impact. Our A1 MCM helps reduce embodied carbon by performing better with lower embodied carbon emission, A1–A3: 4.42 CO₂ Eq. By choosing cladding materials with lower embodied carbon, builders can minimize the overall carbon footprint of their projects. This is crucial in the fight against climate change, as it reduces the greenhouse gases emitted during the lifecycle of a building. These materials often utilize innovative technologies and sustainable resources, which not only lower emissions but also improve energy efficiency and durability. In essence, adopting lower embodied carbon cladding materials supports sustainable construction practices that align with global efforts to achieve more environmentally responsible and resilient urban development.
Thanks to our innovative composite technology, we use 66% less aluminium compared to 3 mm traditional solid aluminium cladding, which represents a significant saving of raw material. This results in lower carbon emissions and offers lower embodied carbon for projects, helping to reduce the carbon footprint of the construction industry. Furthermore, our CNC routing time is five times faster than that of 3 mm solid aluminium material, leading to further energy savings.

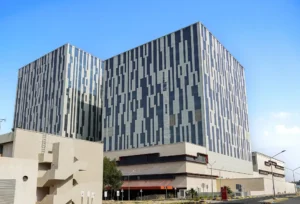

A2 Composite material by our manufacturing partner has been used on over 250 high-rise buildings, with over one million square meters on large international corporations, including offices, airports, hospitals, retail, and residential buildings. The new A1 technology takes this to the next level, providing maximum fire safety, and the biggest change is that it does not propagate smoke when compared to A2 material, which may propagate smoke during a fire. This significant technical advancement will certainly help to protect building users.
METALSPAN by ALUCOPANEL A1 MCM is EPD Certified by SCS Global (Valid from June 14, 2024 through June 13, 2029). The certification reflect years of detailed Life Cycle Assessments (LCA) and highlight the commitment to sustainability, durability, and recyclability.
METALSPAN by ALUCOPANEL A1 MCM is a Euroclass A1 non-combustible Metal Composite Material (MCM) featuring a 100% inorganic mineral core. It is designed for high-performance façade applications where maximum fire safety is required.
Euroclass A1 (EN 13501-1) is the highest fire classification for construction materials in the UK and Europe. It means the material is non-combustible and does not contribute to fire growth.
A1 MCM – Non-combustible (no contribution to fire). A1 MCM provides the highest level of fire performance compared to traditional ACM materials. A2 ACM – Limited combustibility, PE core ACM – Combustible
Yes. Due to its non-combustible classification, it is suitable for high-rise and high-risk buildings where strict fire safety regulations apply
The panel contains a 100% inorganic mineral core, meaning it does not contain combustible polyethylene content.
Yes. The composite structure reduces aluminium usage by approximately 66% compared to 3 mm solid aluminium, helping to lower embodied carbon and overall material demand.
Yes. Despite its fire performance, the composite structure makes it significantly lighter than solid aluminium, allowing: easier handling, faster fabrication, reduced structural load, lower transportation impact
Yes. It can be CNC routed, folded, and fabricated into cassette or plank systems, making it suitable for modern rainscreen cladding systems. METALSPAN has 5 different systems: 3 rainscreen, horizontal & vertical plan systems.
ALUCOPANEL A1 is available in: solid colours, metallic finishes, stone finishes, wood finishes etc… Coatings typically include high-performance PVDF and HDPE coating techniques.
Yes. The panels are engineered for long-term durability and resistance to: UV exposure, extreme temperatures, coastal conditions, corrosion
Warranty periods vary depending on coating system and project conditions, commonly up to 20 years (subject to terms and application).
